# Form Layouts

Design a side-by-side review form for each document type and optional sub-type. Configure sections, errors, functions, actions, and related views.

Use **Form Layouts** to design what reviewers see and edit beside the source document in [Managing Documents](/document-intake-cockpit/cockpit-views/managing-a-document.md). A layout can target a document type or one of its [Sub-types](/document-intake-cockpit/configuration/document-configuration.md#sub-types).

Open **Configuration** → **Form Layouts** in the side menu.

{% hint style="info" %}
Layouts bind to fields from the document type schema. Create or update the schema first in [Document Configuration](/document-intake-cockpit/configuration/document-configuration.md), then design the form used during review.
{% endhint %}

## Prerequisites

Before you start, prepare the following:

* The document type schema and any [Sub-types](/document-intake-cockpit/configuration/document-configuration.md#sub-types) the layout targets
* Tenant cloud functions used by field hooks or [Document Actions](/document-intake-cockpit/configuration/form-layouts/form-layout-actions.md)
* Access controls used to restrict actions
* Representative documents for the default type and each sub-type you configure
* Working API endpoints and sample records for dynamic [Lookups and Dropdowns](/document-intake-cockpit/configuration/form-layouts/form-layout-lookups.md)

## Layouts list

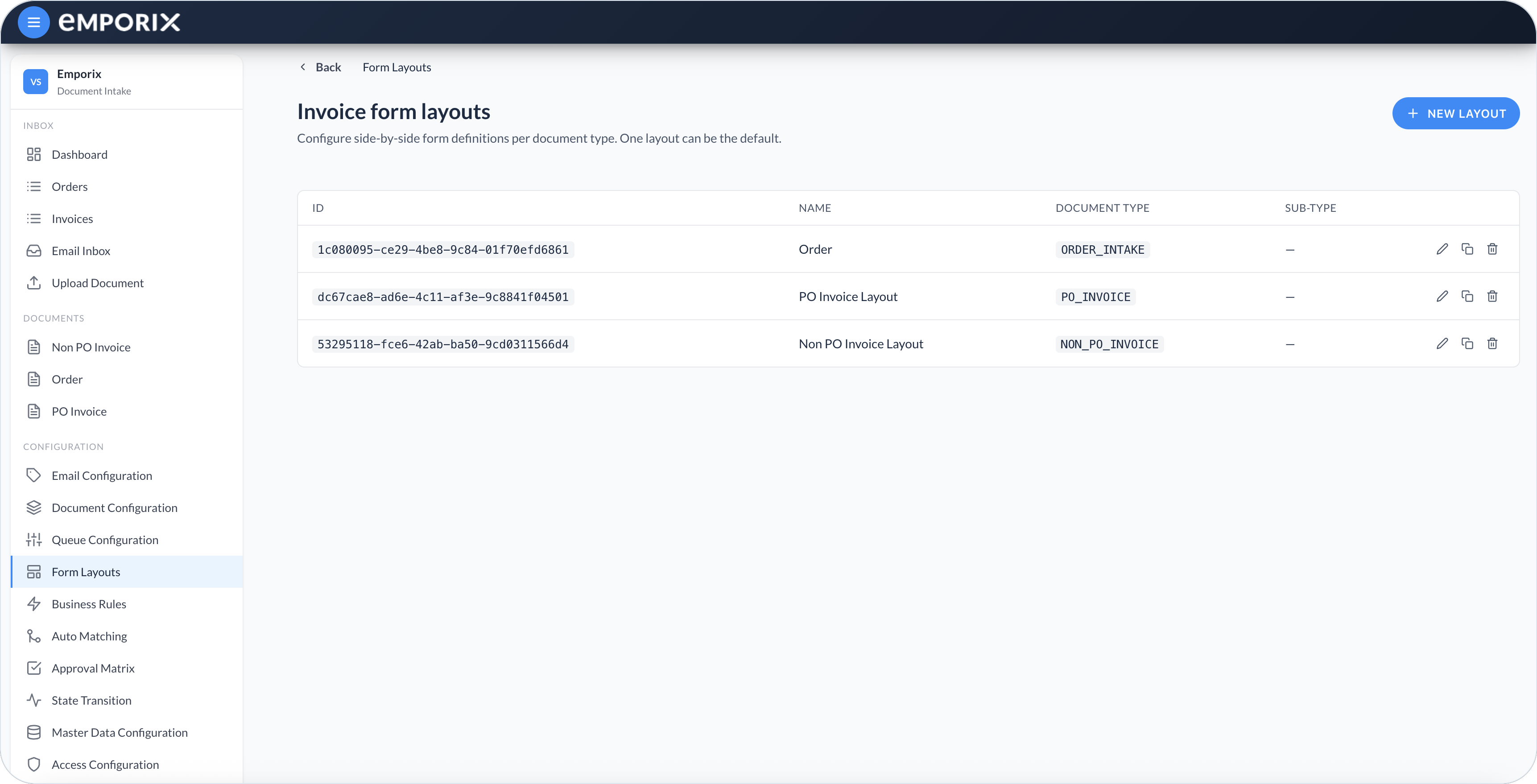

The list shows each form layout with its **ID**, **Name**, **Document type**, and **Sub-type**. The **ID** is a generated, read-only UUID. You can create only one layout for each document-type/sub-type pair. The **Sub-type** column shows **–** for the fallback layout, which the editor labels **Default (all / fallback)**.

When the cockpit opens a document, it first looks for a layout that matches the resolved sub-type. If no sub-type-specific layout exists, it uses the default layout for the document type. A document cannot be edited when neither layout exists.

Select **New layout** to create a layout. Use a row's edit action to open **Edit form layout**, clone to start from an existing layout for another type or sub-type, or delete a layout you no longer need.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-6e3e17adb1b06f97cce878d828684554d510ffb5%2Fform_layouts.png?alt=media" alt="Form Layouts list with ID, Name, Document type, Sub-type, edit, clone, and delete"><figcaption><p>Form Layouts with ID, name, document type, and sub-type</p></figcaption></figure>

Use the layout editor to configure how the forms are displayed:

* **Form Sections** – Titled blocks and fields reviewed beside the document preview. See [Form Layout Sections](/document-intake-cockpit/configuration/form-layouts/form-layout-sections.md).
* **Errors** – Validation panel position and the red **Errors** panel that shows messages from a document field.
* **Related Entity Tabs** – Read-only tabs for linked records such as a customer or vendor. See [Related Tabs and AI Insight](/document-intake-cockpit/configuration/form-layouts/form-layout-related-tabs.md).
* **Functions** – Shared JavaScript reused by [field hooks](/document-intake-cockpit/configuration/form-layouts/form-layout-sections.md#shared-functions-and-field-hooks).
* **Document Actions** – Header buttons for edit, save, approval, and other workflows. See [Document Actions](/document-intake-cockpit/configuration/form-layouts/form-layout-actions.md).
* **AI Insight Box** – Optional recommendation panel and its action buttons. See [Related Tabs and AI Insight](/document-intake-cockpit/configuration/form-layouts/form-layout-related-tabs.md#ai-insight-box).

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-a30b1599e6d4d64d5e670347f912f94ca7c79d5f%2Fform_layouts_edit.png?alt=media" alt="Edit form layout Form Sections with Name, Document type, Customer section, and a dropdown field"><figcaption><p>Edit form layout with Form Sections and a Customer dropdown field</p></figcaption></figure>

## Creating or editing a layout

{% stepper %}
{% step %}

#### Start a new layout or open an existing one

Select **New layout**, or use a row's edit action for an existing layout. Enter a clear **Name (EN)** so administrators can recognize the layout in the list.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-4430619627d13aa3a78d18c8af8555a18884015a%2Fform_layouts_new.png?alt=media" alt="New form layout with Name (EN), Document type, Sub-type, and empty Form Sections"><figcaption><p>New form layout with name (EN), document type, and sub-type</p></figcaption></figure>
{% endstep %}

{% step %}

#### Select the scope

Select a **Sub-type** first when you are creating a variant-specific layout. The sub-type determines its document type. To create the fallback layout, leave **Sub-type** set to **Default (all / fallback)** and select the **Document type**. The cockpit loads schema field paths into the **Binding** dropdown so every field maps to extracted document data.
{% endstep %}

{% step %}

#### Configure the validation panel

Open the **Errors** tab. This tab defines two independent areas: the **Validation Box** and the **Errors** panel. They do not show the same messages.

Set **Validation panel position** to **Inline (top of Details tab, above fields)** or **Above tabs (stays visible on every tab)**.

Set **Validation box when successful** to **Always show** (default) or **Hide when validation is successful**.

* **Always show** – Keeps the validation panel when the result is **Validation: SUCCESS** and there are no issues.
* **Hide when validation is successful** – Hides that panel when validation succeeds. It still appears when validation has issues, or when an error was skipped and **Save** has not run yet.

The setting applies for both panel positions. Existing layouts stay on **Always show** until you save **Hide when validation is successful**.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-18a5e015445b80688660ae4ccf316db30238f5c0%2Fform_layouts_validation_box.png?alt=media" alt="Errors tab Validation box with panel position and hide when successful"><figcaption><p>Errors with validation box position and hide-when-successful</p></figcaption></figure>
{% endstep %}

{% step %}

#### Configure the Errors panel

For the red **Errors** panel, optionally enter a localized **Box name**, then select **Error field**. Choose the document field that already holds the messages. An empty box name uses **Errors**.

* If the field is a string, its value is the message line.
* If the field is a list of objects, **Message field** appears so you can choose the item property used as each line. It defaults to `message` when that property exists.

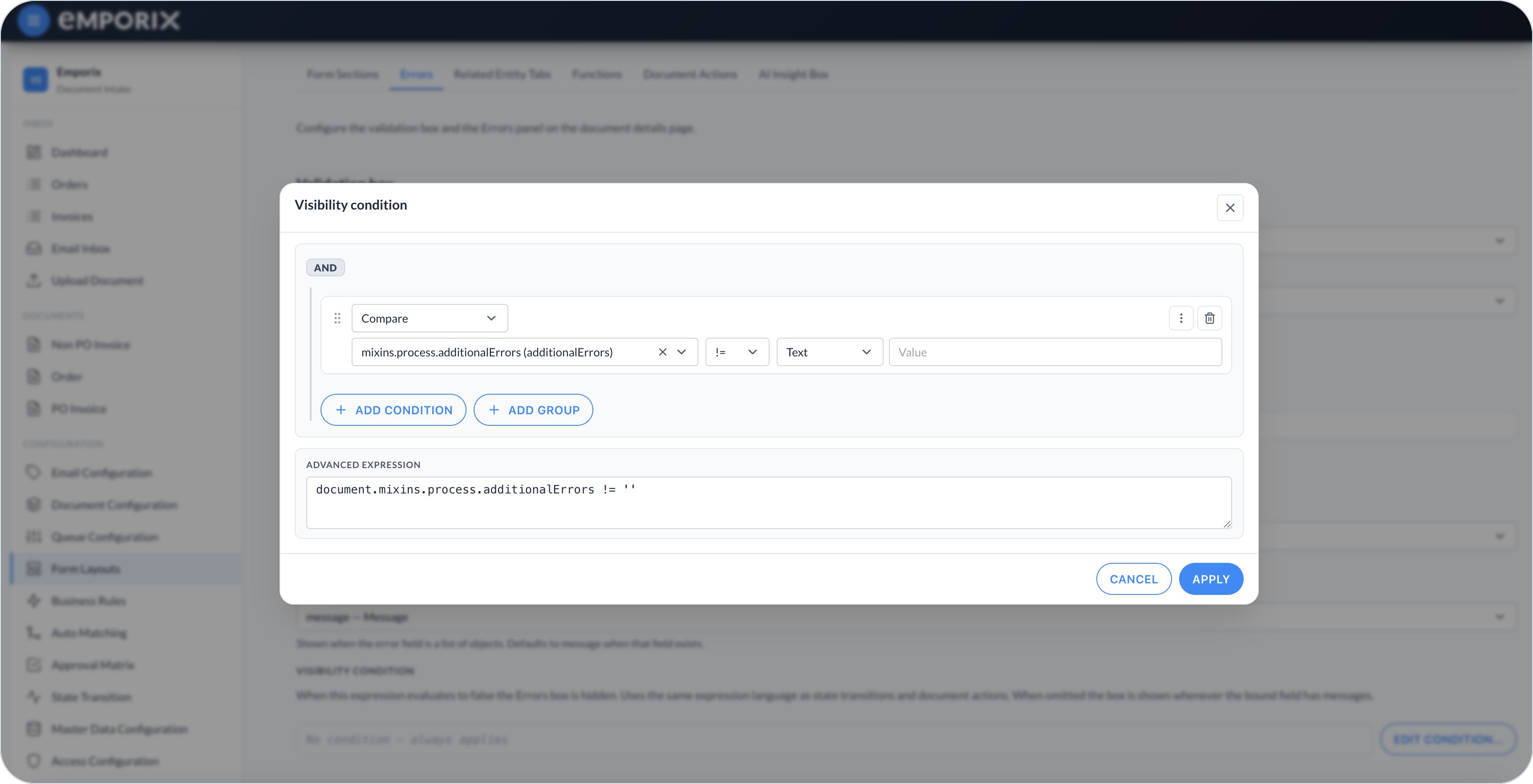

The **Errors** panel appears when **Error field** is set and that field has at least one message. Add a **Visibility condition** when the panel must also depend on document data or runtime context. If the condition evaluates to false, or **Error field** is not set, the panel stays hidden. Select **Edit condition…** to build the expression.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-ce1c1ced7415a322cb6b006cb41b51982f7e53fa%2Fdocument_intake_cockpit_form_layout_errors.png?alt=media" alt="Errors tab with Box name, Error field, Message field, and Visibility condition"><figcaption><p>Errors with box name, error field, message field, and visibility condition</p></figcaption></figure>

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-1ca87f460bb93b2fd0b5ee03c230094ca536bcce%2Fform_layouts_errors_visibility.png?alt=media" alt="Visibility condition dialog with Compare, AND group, and Advanced expression"><figcaption><p>Visibility condition with compare, groups, and advanced expression</p></figcaption></figure>
{% endstep %}

{% step %}

#### Build sections

On the **Form Sections** tab, add the sections and fields reviewed beside the document preview. See [Form Layout Sections](/document-intake-cockpit/configuration/form-layouts/form-layout-sections.md).
{% endstep %}

{% step %}

#### Configure related tabs, functions, actions, and AI insight

Use the other editor tabs as needed:

* **Related Entity Tabs** and **AI Insight Box** – See [Related Tabs and AI Insight](/document-intake-cockpit/configuration/form-layouts/form-layout-related-tabs.md).
* **Functions** – Define shared JavaScript for [field hooks](/document-intake-cockpit/configuration/form-layouts/form-layout-sections.md#shared-functions-and-field-hooks).
* **Document Actions** – See [Document Actions](/document-intake-cockpit/configuration/form-layouts/form-layout-actions.md).
  {% endstep %}

{% step %}

#### Save and confirm in review

Select **Save**. Open a document of that type and choose **Manage** to confirm the layout beside the document preview.
{% endstep %}
{% endstepper %}

## Generate with AI

On **Form Sections**, select **Generate with AI** after you choose a document type or sub-type. The assistant proposes sections, labels, controls, and widths from the schema. Review the result and adjust bindings or lookups as needed.

{% hint style="info" %}
**Generate with AI** needs a document type so it can read the schema. It can refine an existing layout. Always review dropdown and lookup configuration before you make the layout available for document review.
{% endhint %}

## Layout checks

Before you use the layout for document review, check the following:

* Open representative default and sub-type documents and confirm each document resolves to the intended layout.
* Check field order, widths, hidden fields, read-only fields, table columns, and summaries with realistic values.
* Trigger validation and configured errors, including conditions that show or hide the error box.
* Test dropdowns, lookups, populate mappings, related tabs, and field hooks with real records.
* Test every action in each applicable mode and confirm it is unavailable in excluded modes. Repeat with permitted and denied users, and with documents that pass and fail its conditions.
* For an **Open modal** action, test required inputs, bound responses, successful and failed functions, refresh behavior, and the resulting document state.
* Save, reopen the layout, and repeat the main review workflow in [Managing Documents](/document-intake-cockpit/cockpit-views/managing-a-document.md).

## Layout in documents

When a document is opened, the sub-type-specific layout is used when one matches. Otherwise, the default layout for the document type is used. **Details**, configured header actions, and related-entity tabs (when you add them) come from that layout. The **AI Insight Box** appears when you configure it and the document has recommendation text. The configured error box appears when its field contains a message and its optional visibility condition passes. The **Attachments** tab is available by default and is not configured in the form layout. See [Attachments](/document-intake-cockpit/cockpit-views/managing-a-document.md#attachments).

{% hint style="info" %}
Access to **Form Layouts** is controlled in [Access Configuration](/document-intake-cockpit/configuration/access-configuration.md). Schema fields must exist in [Document Configuration](/document-intake-cockpit/configuration/document-configuration.md) before you can bind them here. See the [Order Intake Example](/document-intake-cockpit/configuration-examples/order-intake.md) for a worked tenant configuration in this cockpit.
{% endhint %}


---
