# Lookups and Dropdowns

Configure fixed or API-backed dropdowns and searchable lookups for document fields, including mappings that populate related values.

Use a **dropdown** to present fixed choices or search options from an API. Use a **lookupModal** when a filterable result table is needed with several columns. Dynamic selections can populate related document fields.

A **dropdown** is a compact list that stores one value. A **lookupModal** opens a table where you can filter configured columns, compare records, and select one result.

Configure these controls on the **Form Sections** tab of a [Form Layout](/document-intake-cockpit/configuration/form-layouts.md). Saving a [Master Data](/document-intake-cockpit/configuration/master-data.md) type does not enable document lookups. The field must use one of these controls and have its options configured.

## Static dropdown

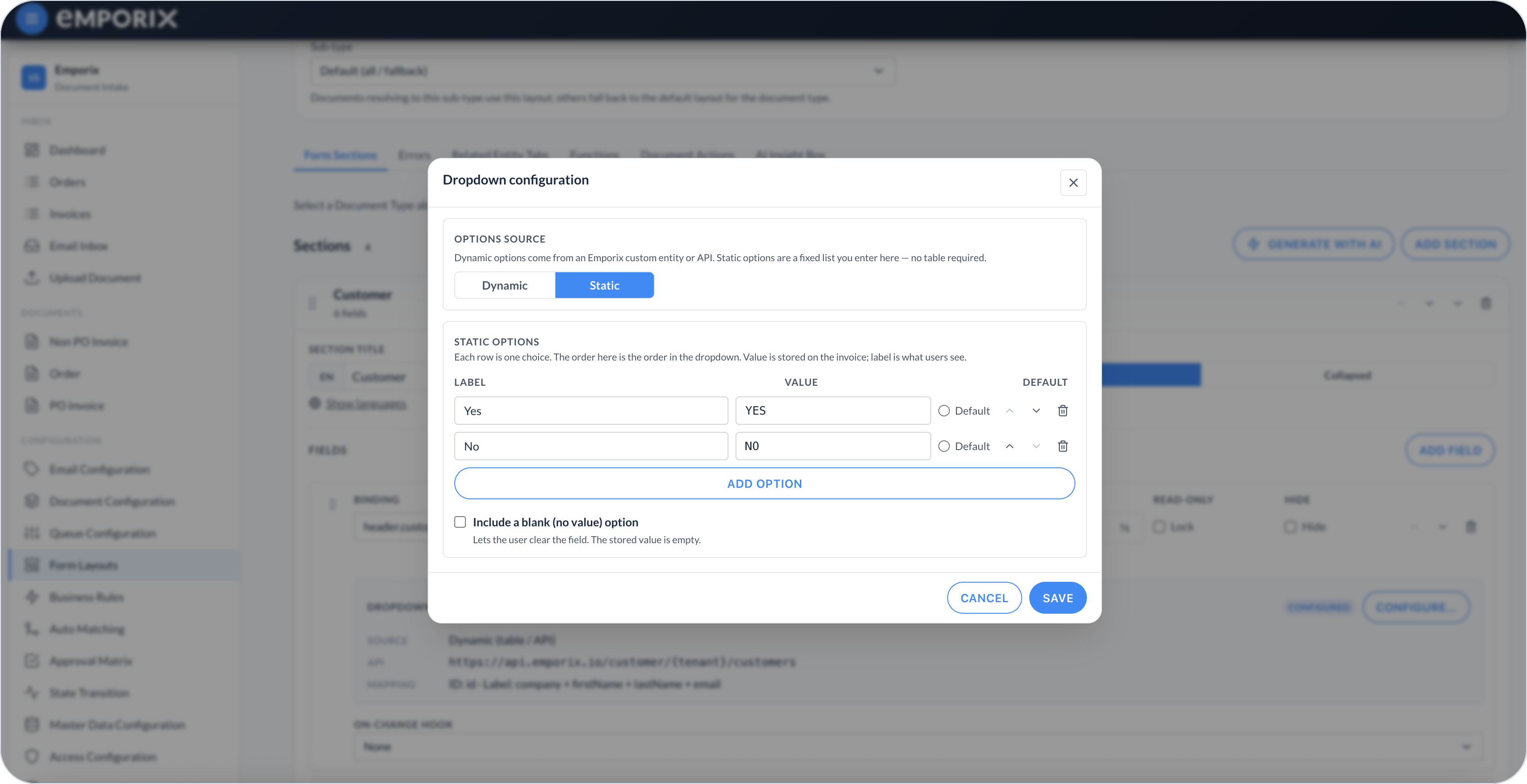

Use a static dropdown for a short fixed list that belongs to the layout. Set **Options source** to **Static**, then add each **Label** and **Value**. The label is shown; the document stores the value. Use the move controls to set the option order.

Optionally select one row as **Default**. When edit mode starts and the document has no stored value, the cockpit writes the default to the draft and runs the field's on-change hook. The document's configured save action is still required to persist it.

Enable **Include a blank (no value) option** when the field must be clearable. Clearing an existing value does not reapply the default during the same edit.

Static options do not need an API or custom-entity table. They cannot use **Populate from selection** because they contain only the configured label and value. Use an on-change hook when selecting a static value must update other fields.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-4fe5379281af7b5f323a269560382114028f8202%2Fform_layouts_dropdown_static.png?alt=media" alt="Dropdown configuration Static options with Label, Value, Default, and Include a blank option"><figcaption><p>Static dropdown with label, value, default, and blank option</p></figcaption></figure>

## Dynamic dropdown

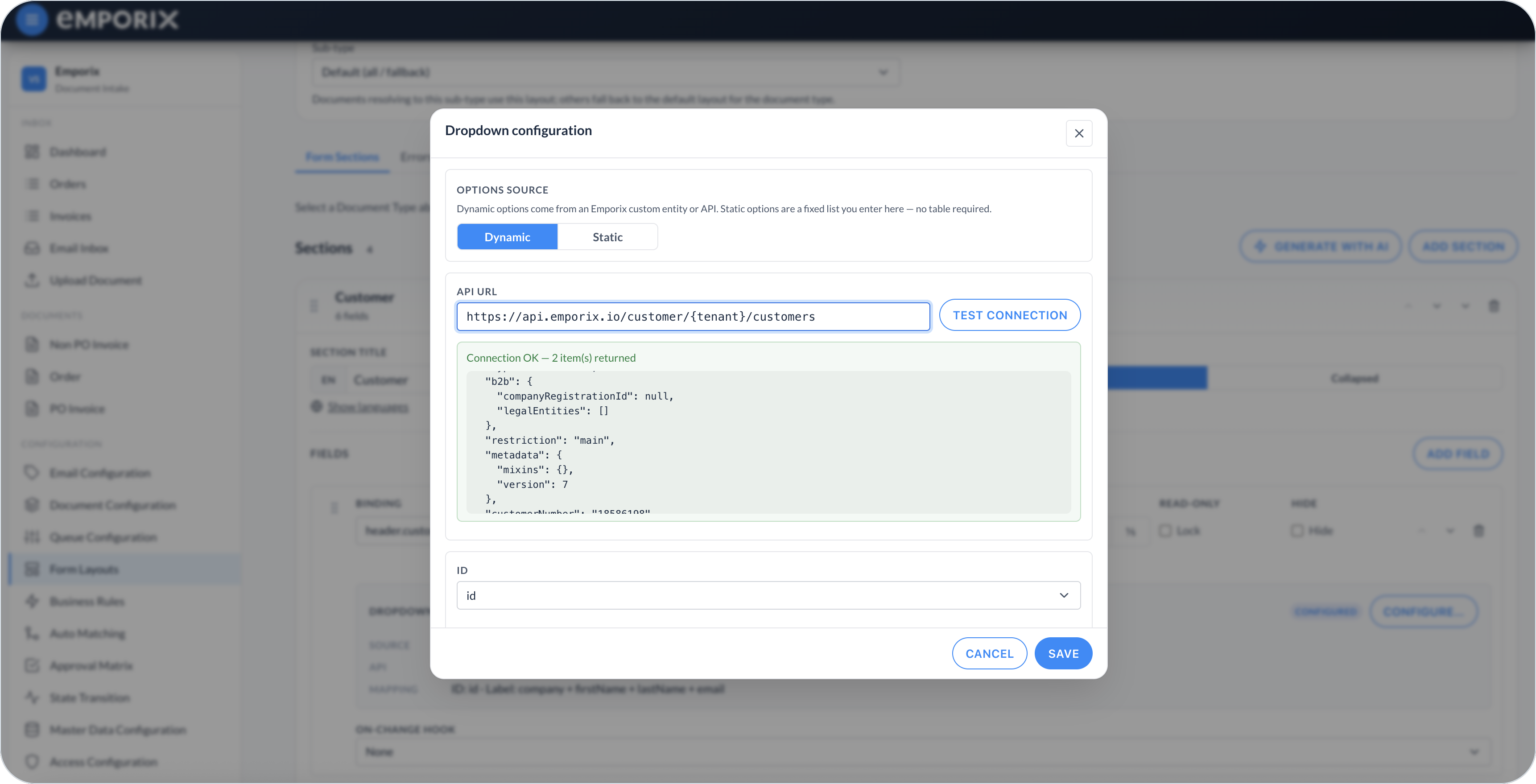

Set **Options source** to **Dynamic**, then set **API URL** to the list endpoint. Use `{tenant}` for the current tenant and `{query}` for the search text, for example `https://api.emporix.io/customer/{tenant}/customers?q={query}`.

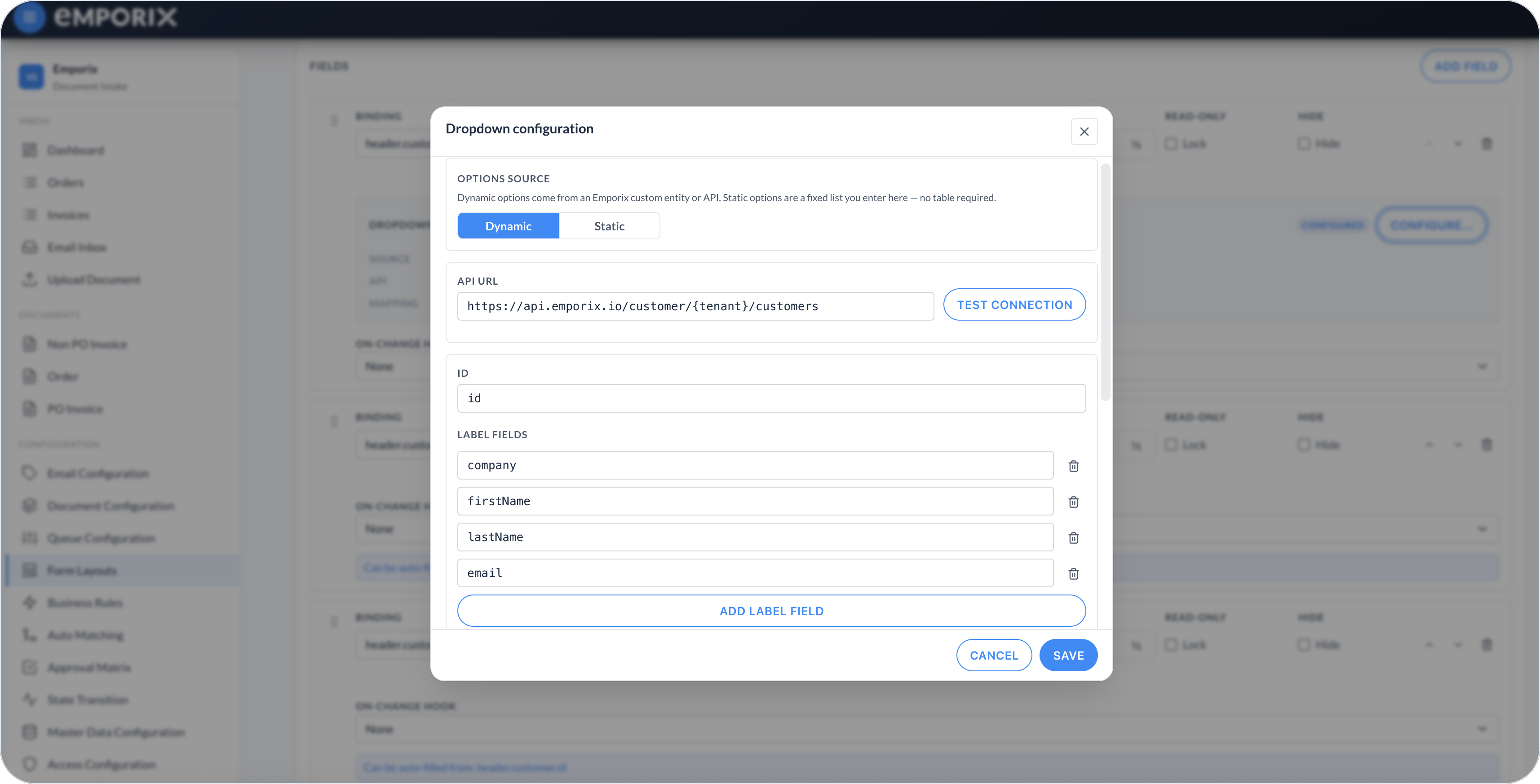

**ID** is the value stored on the document. **Label fields** are joined to form the text shown after a value is picked; when no label field is set, the ID is the label. Dynamic dropdowns can be cleared.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-b30bec6f08ef91aff4f575b76f434ccbb7b2419b%2Fform_layouts_dropdown_dynamic.png?alt=media" alt="Dropdown configuration Dynamic with API URL, Test connection, and Connection OK"><figcaption><p>Dynamic dropdown with API URL and test connection</p></figcaption></figure>

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-72df0274af5c15e868557a2f54e8fa377ab33e04%2Fform_layouts_dropdown_labels.png?alt=media" alt="Dropdown configuration Label fields company, firstName, lastName, and email"><figcaption><p>Dynamic dropdown with label fields</p></figcaption></figure>

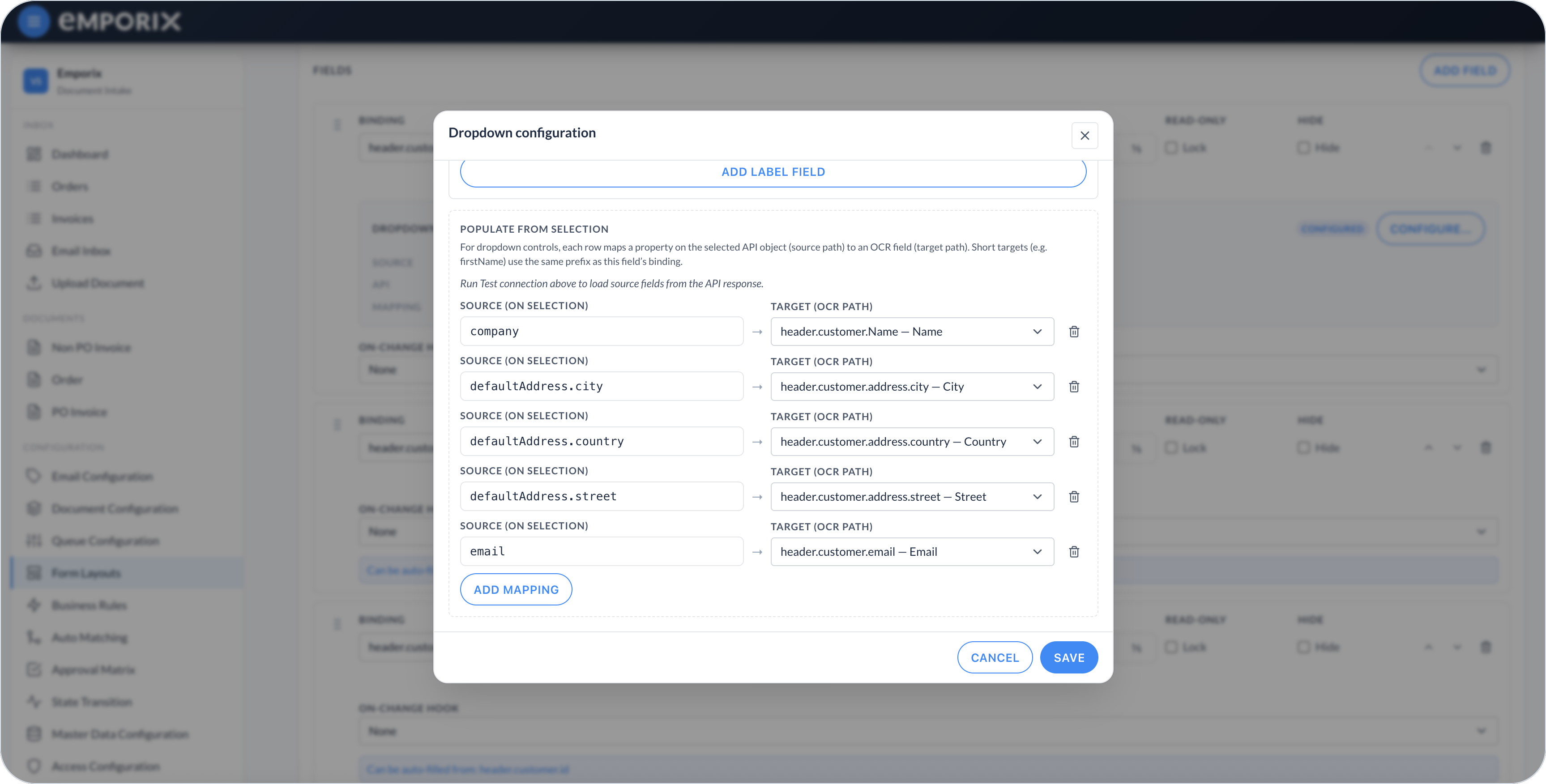

**Populate from selection** maps a source property on the selected API record to a target document field. The mappings run immediately after selection and before the field's optional on-change hook. In the dialog, source rows are **Source (on selection)** and targets are **Target (OCR path)**.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-0633ff19995b2b6146d1452e92dcd0c4fafe1afe%2Fform_layouts_dropdown_populate.png?alt=media" alt="Dropdown configuration Populate from selection with Source and Target OCR path mappings"><figcaption><p>Populate from selection with source (on selection) and target (OCR path)</p></figcaption></figure>

## Lookup

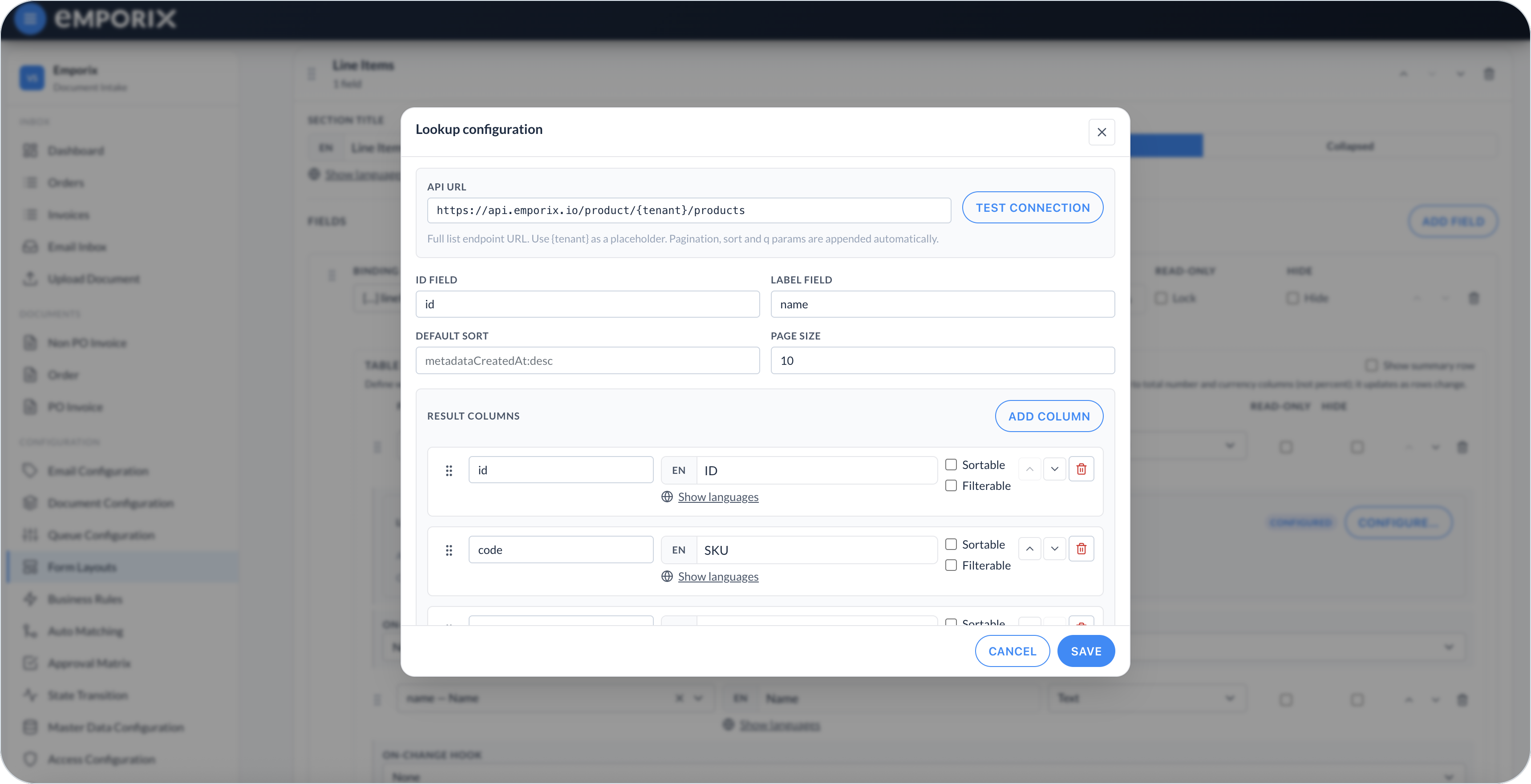

Set **API URL** to the list endpoint and use `{tenant}` for the current tenant, for example `https://api.emporix.io/schema/{tenant}/custom-entities/ZG_VENDOR/instances`. Pagination, sort, and filter parameters are appended automatically. **ID field** is the value stored on the document. **Label field** is the text shown after a value is picked. **Result columns** are the columns in the lookup table. A **lookupModal** also has **Populate from selection**, with the same source-to-target mapping as a dropdown.

Use **Default sort** in the form `field:asc` or `field:desc` to control the initial result order. **Page size** controls how many records each request returns. For each result column, choose whether sorting or filtering is available for it. The lookup has per-column filters rather than one general search field. When a result field is an array, select its **Array item** fields to show values from each item; leave them empty to show only the item count.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-bf207777fdac397dd4d93edf31ceea255a390c02%2Fform_layouts_lookup.png?alt=media" alt="Lookup configuration with API URL, ID field, Label field, Default sort, Page size, and Result columns"><figcaption><p>Lookup configuration with API URL, identity fields, and result columns</p></figcaption></figure>

**Static filters** always apply a **Field path** and **Value**. **Dynamic filters** apply a **Field path** whose **Document field path** is read from the current document. Select **Add filter** for either list. Use a static filter for a value that never changes, such as an open status. Use a dynamic filter when the lookup follows a value already on the document, such as vendor ID.

<figure><img src="https://1808414410-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPBaf05o2vgbdikMFDTyz%2Fuploads%2Fgit-blob-823416f85a1a36121b249994502ab191237815c6%2Fform_layouts_lookup_filters.png?alt=media" alt="Lookup configuration Static filters, Dynamic filters, and Populate from selection"><figcaption><p>Lookup with Static filters, Dynamic filters, and Populate from selection</p></figcaption></figure>

If a dynamic filter's document field is empty, that filter is omitted. The lookup can therefore return an unfiltered result set. Mark the driver field as required in [Document Configuration](/document-intake-cockpit/configuration/document-configuration.md), or require it to be selected first, when opening an unfiltered lookup would be unsafe.

Enable **Select a nested line item** when a nested line inside a parent record must be chosen. Set **Line items array**, **Line ID field**, and **Line label field**, then configure the line-item columns. The lookup expands the parent record, displays its lines, and stores the selected line's ID. A populate source can use a field from the selected line or `parent.*` for a property on its parent record.

## Dynamic endpoint requirements

The cockpit calls dynamic endpoints with the signed-in user's bearer token and the current `emporix-tenant` header.

For a dynamic dropdown, the cockpit replaces `{tenant}` and `{query}` in **API URL**. The endpoint must return a JSON array, an object containing an array under `items`, `results`, or `data`, or one object that represents one result. The configured **ID** and **Label fields** must exist on each returned record.

For a lookup, the cockpit replaces `{tenant}` and adds `q`, `pageSize`, `sort`, and the cursor parameter `next` or `prev` when needed. Column filters use contains matching in `q`; static and dynamic filters use exact matching. The response uses the same array shapes as a dynamic dropdown. Cursor-based endpoints return the next and previous values in the `x-next-cursor` and `x-prev-cursor` response headers. Without those headers, the lookup cannot move beyond the returned page.

For a standard lookup, the cockpit resolves an existing selection by requesting **API URL** followed by `/{id}`. For nested line-item selection, it queries the list endpoint with a `q` filter for **Line items array** and **Line ID field**, then finds the selected line in the returned parent records.

Use **Test connection** with representative records before saving. If your endpoint does not support these parameters or response shapes, ask the endpoint owner to provide a compatible list API.

## Populate related fields

Add a **Populate from selection** row for each value copied from the selected API record:

* **Source (on selection)** – Path on the selected record
* **Target (OCR path)** – Document field to fill. A short target such as `firstName` uses the same prefix as this field's binding

For example, a vendor dropdown bound to `header.vendor.id` can use:

| Source (on selection) | Target (OCR path)     |
| --------------------- | --------------------- |
| `id`                  | `header.vendor.id`    |
| `name`                | `header.vendor.name`  |
| `address.city`        | `header.vendor.city`  |
| `paymentTerms`        | `header.paymentTerms` |

You can enter the complete document path or a short target that uses the field's binding prefix.

Clearing the selection writes an empty string to all mapped targets. Use populate only with targets where that is a valid cleared value. When a selected record does not contain one mapped source property, that target keeps its current value. Populate targets can be read-only or hidden, but they must use valid paths from the primary schema. The layout editor marks top-level targets with **Can be auto-filled from**.

For a dropdown or lookup in a table column, use row-relative targets such as `productName` or `unitPrice`. The values are written to the selected row.

## Dependent lookup

Use a dynamic filter when one field limits the available values in another. For example, configure a purchase-order lookup that depends on a vendor selection:

{% stepper %}
{% step %}

#### Configure the driver field

Configure the vendor dropdown to store its ID in `header.vendor.id`.
{% endstep %}

{% step %}

#### Add a dynamic filter

On the purchase-order lookup, add a **Dynamic filter**. Set **Field path** to the vendor field expected by the purchase-order API, for example `vendorId`. Set **Document field path** to `header.vendor.id`.
{% endstep %}

{% step %}

#### Test both cases

Test first with a vendor selected, then with an empty vendor field.
{% endstep %}
{% endstepper %}

Changing the vendor does not automatically clear an already selected purchase order. Add an [on-change hook](/document-intake-cockpit/configuration/form-layouts/form-layout-sections.md#shared-functions-and-field-hooks) to the vendor field when the dependent value must be cleared:

```javascript
return {
  'header.purchaseOrder.id': '',
  'header.purchaseOrder.number': ''
}
```

Return every dependent field from the same hook. Use the cleared value allowed by each schema field: for example, `''` for optional text or `null` for a nullable number or reference.

## Configuring a lookup or dropdown

{% stepper %}
{% step %}

#### Choose the control and source

Select **dropdown** or **lookupModal** as the field control. For a dropdown, select **Static** or **Dynamic** under **Options source**.
{% endstep %}

{% step %}

#### Configure the options or API

For a static dropdown, add the label/value rows. For a dynamic dropdown or lookup, set the **API URL** and identity fields.
{% endstep %}

{% step %}

#### Test the connection

For a dynamic control, select **Test connection** so source fields become available. Skip this step for a static dropdown.
{% endstep %}

{% step %}

#### Map populate or result columns

For a dynamic dropdown or lookup, add **Populate from selection** mappings when the choice must fill other document fields. For a lookup, also define **Result columns**.
{% endstep %}

{% step %}

#### Save and verify

Select **Save** on the layout, then open a representative document and verify:

* The selected label and stored ID.
* Every populated target, including behavior when the selection is cleared.
* Dynamic filters with a filled and empty driver field.
* Defaults and blank options.
* Table-row mappings when the control is in a table.

Return to the layout to correct and save any unexpected behavior.
{% endstep %}
{% endstepper %}


---
